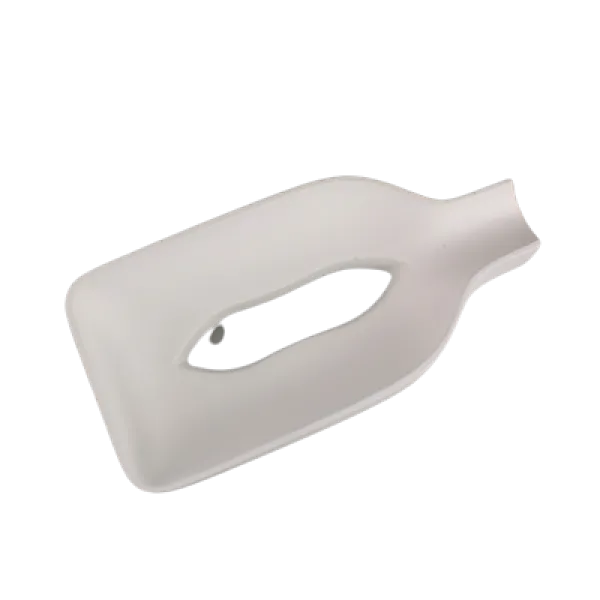

The Drop Out Center Bottle Slumping Mold from Creative Paradise is a ceramic slumping form used to slump a glass bottle flat and develop a defined drop in the center of the finished piece. The overall mold measures 13 inches long by 6.5 inches wide by 2.5 inches tall, and the center drop spans 7 inches long by 2 inches wide and falls 1 inch deep.
Like all ceramic slumping molds, this one is COE agnostic and works with standard glass bottles, COE96, or other fusible glass. Coat the mold surface with a kiln wash or boron nitride primer before firing, set your glass piece over the form, and fire on a slump schedule suited to your glass. The mold is reusable across many firings when prepped and cared for properly.
What finished shape does this mold create?
It slumps a glass bottle or blank into a flat piece with a long narrow drop in the center. The drop measures 7 inches long by 2 inches wide and 1 inch deep, set within a mold that is 13 inches long by 6.5 inches wide.
What COE glass can I use with this mold?
Any COE. Ceramic slumping molds are COE agnostic, so the same mold works with standard glass bottles, COE96, or COE90. Match your firing schedule and anneal soak temperature to the glass you are using.
How do I prepare the mold before firing?
Coat the mold surface with a boron nitride primer such as ZYP or a kiln wash such as Hotline Primo Primer, and let it dry completely before placing your glass. Re-coat as needed between firings.
What size glass piece fits this mold?
The mold footprint is 13 inches long by 6.5 inches wide. A standard glass bottle laid flat or a pre-fused blank sized to fit the mold will work well on this form.
Specifications
- SKU: 162076
- Manufacturer: Creative Paradise (CPI.GM203)
- Makes: slumped bottle or blank with drop out center
- Mold size: 13 inches L x 6.5 inches W x 2.5 inches T
- Drop size: 7 inches L x 2 inches W x 1 inch T
- Material: ceramic slumping mold, reusable
- Glass: any COE (COE agnostic), including standard glass bottles
Working Notes
These are guidelines, not guarantees. Every kiln fires a little differently, so test a small run first when the result matters and follow a slumping schedule suited to your glass and kiln.
- Prime the mold surface with a boron nitride mold primer such as ZYP Boron Nitride Mold Primer, or a kiln wash, and let it dry completely before placing your glass so the glass does not stick.
- Place a glass bottle laid flat or a pre-fused blank over the mold, centered so the piece will drape into the drop out center as it softens during firing.
- The mold is COE agnostic. Use a slump schedule matched to your glass, adjusting the final anneal soak for your COE.
- Let the kiln cool fully before removing the slumped piece. Re-coat the mold with primer as needed between firings.
- The Slide Hi Temp brand separator is not recommended with these molds.
Creative Paradise Suggested Firing Schedule
This is a suggested COE96 starting schedule, not a guarantee. Every kiln fires differently. Test a small run and adjust the schedule for your glass and kiln.
Slump (COE96 or standard bottle glass):
| Segment |
Rate |
Temp (F) |
Hold |
| 1 |
300 |
1230 |
45 |
| 2 |
300 |
1350 |
15 |
| 3 |
9999 |
1470 |
10 |
| 4 |
9999 |
950* |
60 |
*If using COE90 instead of a standard glass bottle or COE96, adjust this temperature to 900 F.
Helpful downloads: Bottle Art Tutorial (PDF) · Drop Bottle Slumping Tutorial (PDF)
