Holey Star Kiln Casting Mold

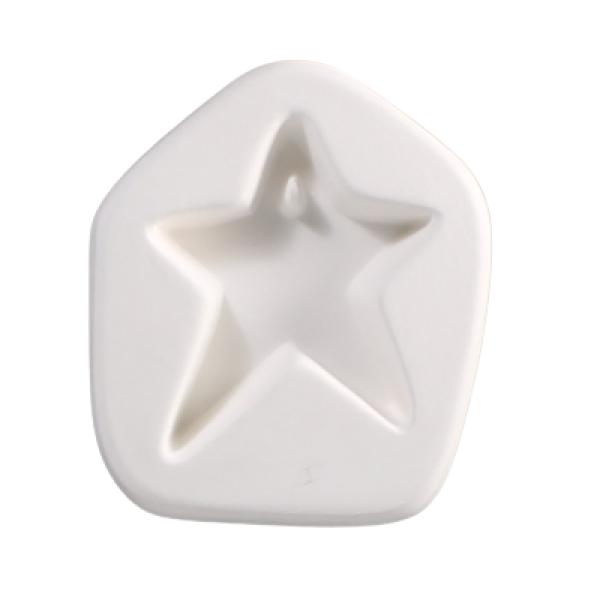

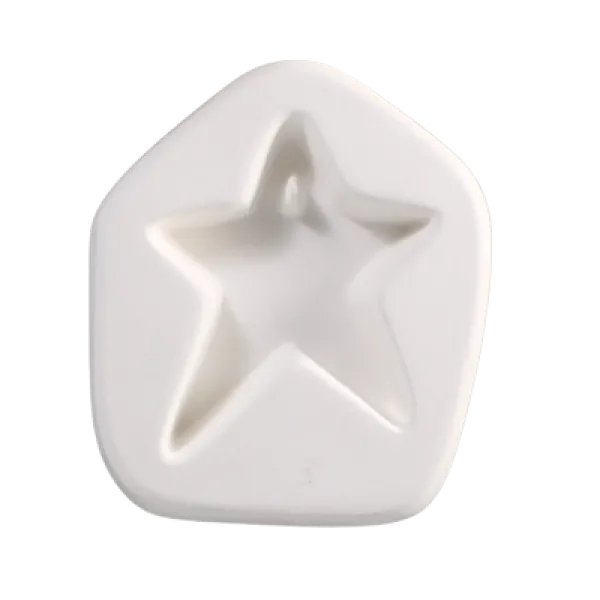

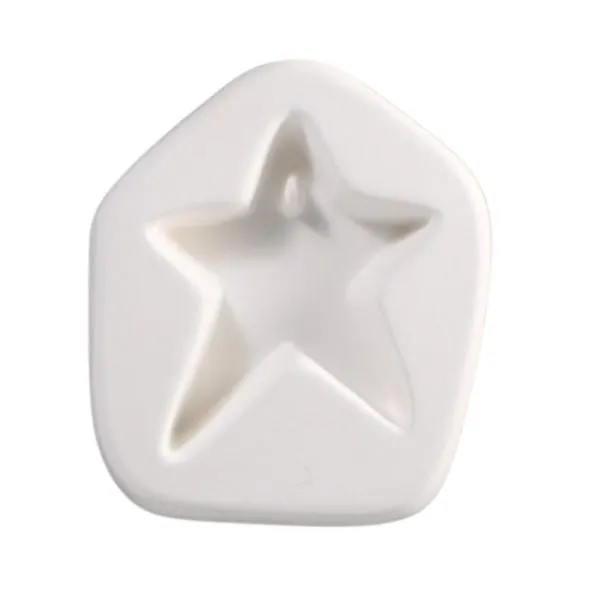

The Holey Star Kiln Casting Mold from Creative Paradise casts a single star shaped piece with a centered hole, finished at 3.5 inches long by 2.5 inches wide. The mold footprint is 4.25 inches by 3.5 inches, keeping it compact on the kiln shelf. The hole through the center of the casting makes finished pieces ready to string or hang as pendants and ornaments without any additional drilling.

Like all ceramic casting molds, this one is COE agnostic. Fill the cavity with frit, small billets, or stacked sheet scrap and fuse so the glass takes the shape of the star. Creative Paradise lists a suggested fill weight of about 30 grams. The mold is reusable across many firings when prepped and cared for properly.

What does the Holey Star mold make?
It casts one star shaped glass piece with a centered hole, finished at 3.5 inches by 2.5 inches. The hole makes the piece suitable for pendants, ornaments, and hanging decorations without additional drilling.

What COE glass can I use in this mold?
Any COE. Ceramic casting molds are COE agnostic, so the same mold works with COE96, COE90, or other fusible glass. Match your firing schedule to the glass you are using.

How much glass do I need?
Creative Paradise lists about 30 grams for the cavity. Weigh your glass and test a first run when the result matters, as fill weight can vary with how fully you load the cavity.

How do I prep the mold before casting?
Coat the cavity with a kiln shelf primer such as a boron nitride spray (for example ZYP) or a kiln wash such as Hotline Primo Primer, and let it dry completely before adding glass. Re coat as needed between firings.

Specifications

• SKU: 154600
• Manufacturer: Creative Paradise (CPI.LF65)
• Makes: 1 star with centered hole
• Finished piece size: 3.5 inches L x 2.5 inches W
• Mold size: 4.25 inches L x 3.5 inches W
• Suggested fill weight: about 30 grams
• Material: ceramic kiln casting mold, reusable
• Glass: any COE (COE agnostic)

Working Notes

These are guidelines, not guarantees. Every kiln fires a little differently, so test a small run first when the result matters and follow a casting schedule suited to your glass and kiln.

• Prime the cavity with a boron nitride mold primer such as ZYP Boron Nitride Mold Primer, or a kiln wash, and let it dry completely before adding glass so the glass does not stick.
• Fill with frit, small billets, or stacked sheet scrap. For a tack fired surface, the manufacturer suggests powder and fine frit filled uniformly to about a quarter inch.
• The mold is COE agnostic. Use a full fuse schedule matched to your glass, adjusting the final anneal soak for your COE.
• Let the kiln cool fully before removing the cast piece. Re coat the mold with primer as needed between firings.
• The Slide Hi Temp brand separator is not recommended with these molds.

Creative Paradise Suggested Firing Schedule

This is a suggested COE96 starting schedule, not a guarantee. Every kiln fires differently. Test a small run and adjust the schedule for your glass and kiln.

Full Fuse (COE96):

Tack Fire (COE96): for a tack fired surface, fill uniformly to about a quarter inch with powder and fine frit.

*Segment 4 is the anneal soak at 950 F for COE96. If using COE90, adjust this temperature to 900 F.

Helpful downloads: Holey Mold Tutorial (PDF) · Fill Weights for Casting Molds (PDF) · Casting Mold Tips (PDF)
