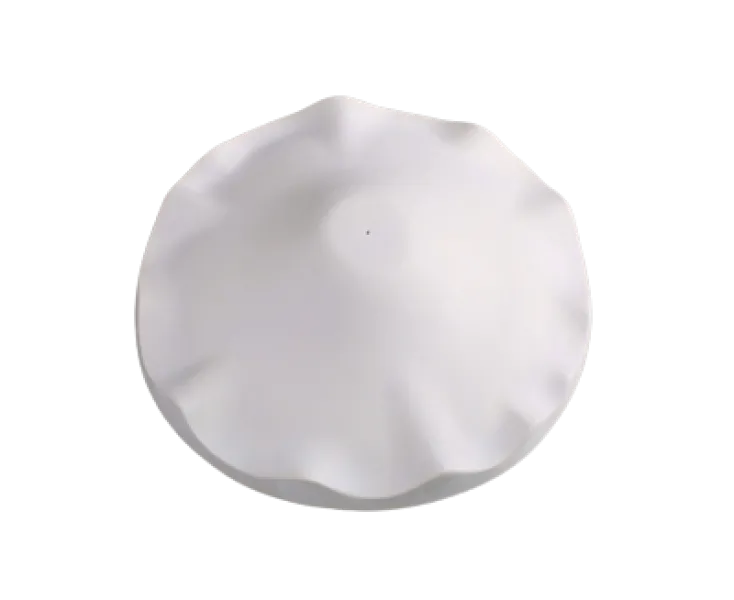

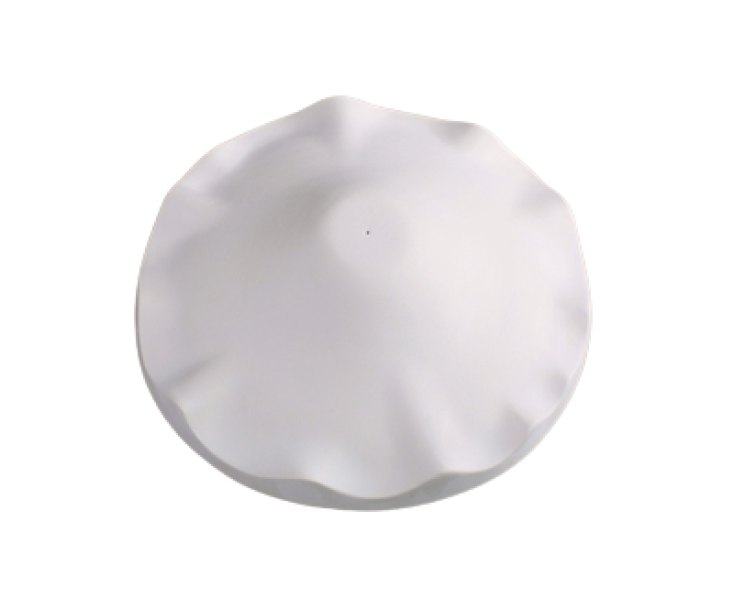

Ruffle Dome Cap Mold

The Ruffle Dome Cap mold from Creative Paradise drapes a pre-made glass blank over a convex dome form with a ruffled edge detail. Set the prepared blank over the mold, fire to temperature, and gravity pulls the softened glass down over the dome, conforming to the ruffled rim profile. The result is a finished dome cap shape with dimensional edge texture, suitable as a decorative accent, a display form, or a focal element in a larger piece.

The mold measures 7.25 inches in diameter. Creative Paradise provides a drape schedule for a double layer of COE96 glass as a starting reference. Like all ceramic kiln molds, the Ruffle Dome Cap is COE agnostic and reusable across many firings when properly prepared.

What does the Ruffle Dome Cap mold make?
It drapes a glass blank into a dome cap shape with a ruffled edge. The mold is 7.25 inches in diameter, and the finished piece takes the dome profile and ruffled rim detail of the form.

How does draping over this mold work?
A pre-made glass blank or fused sheet is placed over the prepared mold. As the kiln heats, the glass softens and sags down around the dome form by gravity, picking up the ruffled edge profile. No frit or cavity filling is involved.

What COE glass can I use with this mold?
Any COE. Ceramic kiln molds are COE agnostic, so the same mold works with COE96, COE90, or other compatible fusible glass. Match your draping schedule and anneal temperature to the glass you are using.

How do I prepare the mold before draping?
Coat the mold surface with a boron nitride primer or a kiln wash such as Hotline Primo Primer and let it dry fully before placing your glass blank. Re-coat between firings as needed.

Specifications

• SKU: 163425
• Manufacturer: Creative Paradise (CPI.GM212)
• Makes: 1 ruffled dome cap
• Mold size: 7.25 inch diameter
• Material: ceramic kiln mold, reusable
• Glass: any COE (COE agnostic)

Working Notes

These are guidelines, not guarantees. Every kiln fires a little differently, so test a small run first when the result matters and follow a draping schedule suited to your glass and kiln.

• Prime the mold surface with a boron nitride mold primer such as ZYP Boron Nitride Mold Primer, or a kiln wash, and let it dry completely before placing your glass blank so the glass does not stick.
• Place a pre-made glass blank or fused sheet over the prepared mold. A double layer of glass is a practical starting point for this dome form.
• The mold is COE agnostic. Use a draping schedule matched to your glass, adjusting the final anneal soak temperature for your COE.
• Let the kiln cool fully before removing the draped piece. Re-coat the mold with primer as needed between firings.
• The Slide Hi Temp brand separator is not recommended with these molds.

Creative Paradise Suggested Firing Schedule

This is a suggested COE96 starting schedule, not a guarantee. Every kiln fires differently. Test a small run and adjust the schedule for your glass and kiln.

Drape (COE96, double layer of glass):

*Segment 3 is the anneal soak at 950 F for COE96. If using COE90, adjust this temperature to 900 F.

Helpful downloads: Hammer Time Mushroom Caps Tutorial (PDF)
