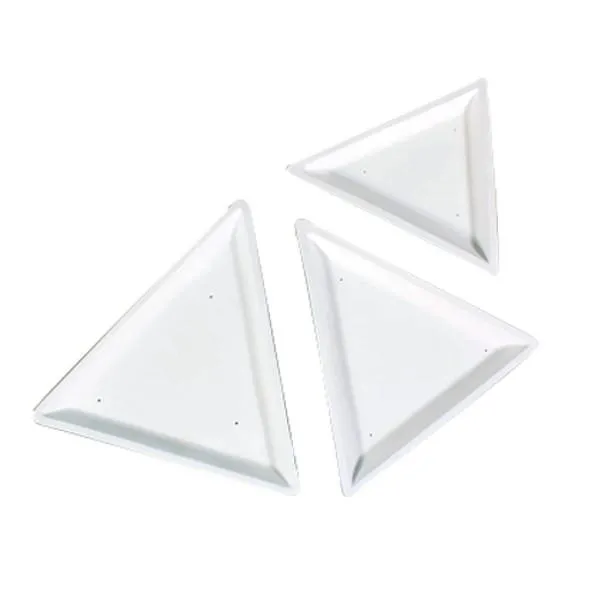

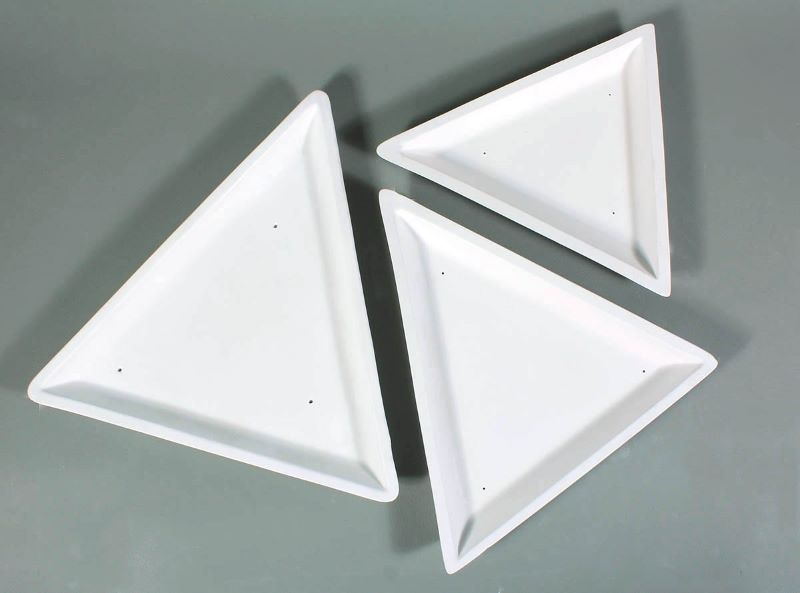

This simple triangular shaped slumping mold make a great plate. For added interest, you can try nesting different sizes of fused glass plates together. Choose from small, medium, or large molds.
GM173 Large Triangle Mold
Mold Size: 9" L x 8.75" W x 0.75" T
Inner Dimensions: 8.25" L x 8" W x 0.5" Deep
Refer to the table below for a suggested Slump schedule for a double layer of COE96 glass:
| Segment |
Rate |
Temp (F) |
Hold |
| 1 |
275 |
1215 |
10 |
| 2 |
50 |
1250 |
10 |
| 3 |
9999 |
950* |
60 |
*If using COE90, adjust this temperature to 900
-----------
GM174 Medium Triangle Mold
Mold Size: 8" L x 7.75" W x 0.75" T
Inner Dimensions: 7.25" L x 7" W x 0.5" Deep
Refer to the table below for a suggested Slump schedule for a double layer of COE96 glass:
| Segment |
Rate |
Temp (F) |
Hold |
| 1 |
275 |
1215 |
10 |
| 2 |
50 |
1250 |
10 |
| 3 |
9999 |
950* |
60 |
*If using COE90, adjust this temperature to 900
-----------
GM175 Small Triangle Mold
Mold Size: 7" L x 6.75" W x 0.75" T
Inner Dimensions: 6.25" L x 6" W x 0.5" Deep
Refer to the table below for a suggested Slump schedule for a double layer of COE96 glass:
| Segment |
Rate |
Temp (F) |
Hold |
| 1 |
275 |
1215 |
10 |
| 2 |
50 |
1250 |
10 |
| 3 |
9999 |
950* |
60 |
*If using COE90, adjust this temperature to 900 |
