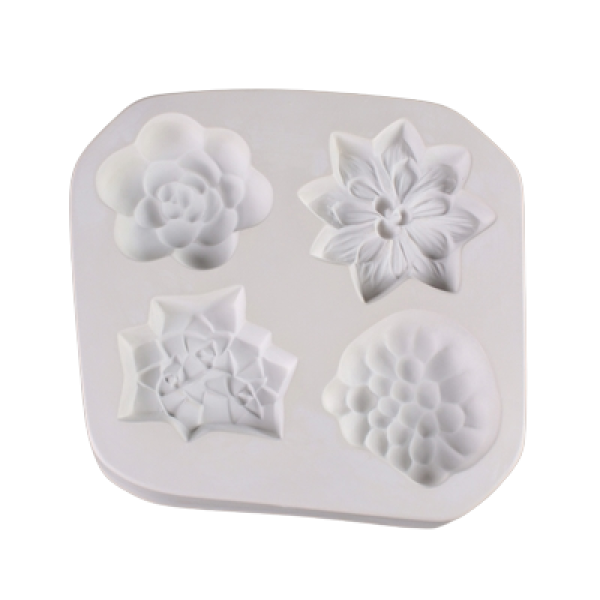

Small Succulent Casting Mold

The Small Succulent Casting Mold from Creative Paradise casts four succulent shaped glass pieces in a single firing. The four cavities produce finished pieces ranging from 2 to 2.5 inches in diameter, giving a naturally varied look across the batch that suits the organic, layered form of a succulent. The mold measures 8.75 inches by 8.25 inches and stands 1.75 inches tall.

Like all ceramic casting molds, this one is COE agnostic. Fill the cavities with frit, small billets, or stacked sheet scrap and fuse to the succulent shape. Fill weights for each cavity are shown in the product photo. As a kiln casting mold it is reusable across many firings when prepped and cared for properly.

What does the Small Succulent Casting Mold make?
It casts four succulent shaped glass pieces in one firing, with finished sizes ranging from 2 to 2.5 inches in diameter. They suit decorative accents, botanical themed jewelry, garden art, and fused glass arrangements.

What COE glass can I use in this mold?
Any COE. Ceramic casting molds are COE agnostic, so the same mold works with COE96, COE90, or other fusible glass. Match your firing schedule to the glass you are using.

How much glass do I need per cavity?
Fill weights for each cavity are shown in the product photo. Weigh your glass and test a first run when the result matters, since fill level affects the final cast thickness and detail.

How do I prep the mold before casting?
Coat the cavities with a kiln shelf primer such as a boron nitride spray (for example ZYP) or a kiln wash such as Hotline Primo Primer, and let it dry completely before adding glass. Re coat as needed between firings.

Specifications

• SKU: 165100
• Manufacturer: Creative Paradise (CPI.LF173)
• Makes: 4 succulent shapes
• Finished piece size: 2 to 2.5 inches diameter each
• Mold size: 8.75 inches L x 8.25 inches W x 1.75 inches T
• Suggested fill weight: see product photo
• Material: ceramic kiln casting mold, reusable
• Glass: any COE (COE agnostic)

Working Notes

These are guidelines, not guarantees. Every kiln fires a little differently, so test a small run first when the result matters and follow a casting schedule suited to your glass and kiln.

• Prime the cavities with a boron nitride mold primer such as ZYP Boron Nitride Mold Primer, or a kiln wash, and let it dry completely before adding glass so the glass does not stick.
• Fill with frit, small billets, or stacked sheet scrap. For a tack fired surface, the manufacturer suggests powder and fine frit filled uniformly to about a quarter inch.
• The mold is COE agnostic. Use a full fuse schedule matched to your glass, adjusting the final anneal soak for your COE.
• Let the kiln cool fully before removing the cast pieces. Re coat the mold with primer as needed between firings. The Slide Hi Temp brand separator is not recommended with these molds.

Creative Paradise Suggested Firing Schedule

This is a suggested COE96 starting schedule, not a guarantee. Every kiln fires differently. Test a small run and adjust the schedule for your glass and kiln.

Full Fuse (COE96):

Tack Fire (COE96): for a tack fired surface, fill uniformly to about a quarter inch with powder and fine frit.

*Segment 4 is the anneal soak at 950 F for COE96. If using COE90, adjust this temperature to 900 F.

Helpful downloads: Basic Frit Casting Tutorial (PDF) · Fill Weights for Casting Molds (PDF) · Casting Mold Tips (PDF)
