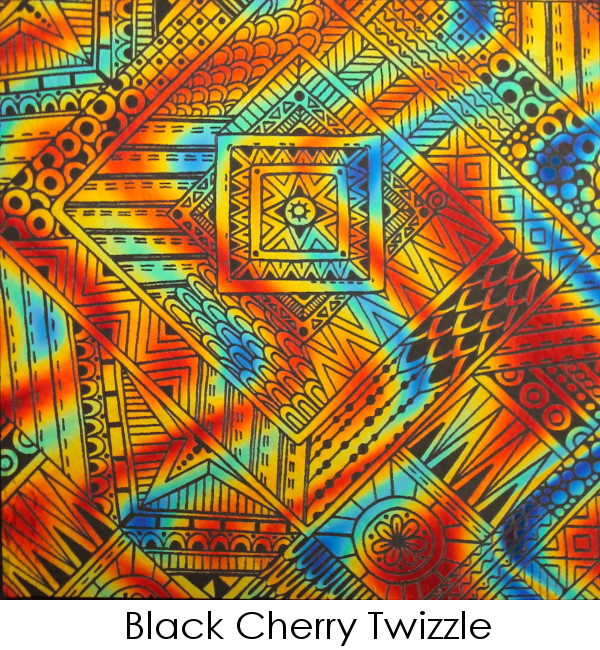

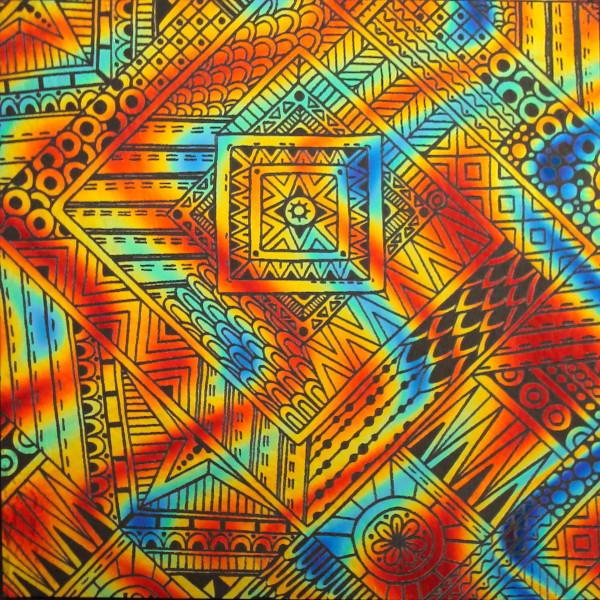

Etched Dichroic Complex Passage packs the field with intricate geometric line work, concentric diamonds radiating from a central medallion, zigzag bands, crosshatched triangles, and rows of fine dots and dashes. Coverage is dense and bold graphic, an all over geometric collage in etched dichroic glass with almost no open ground. The dichroic coating reflects one color and transmits another. On Black Glass it is bold and high contrast, primarily the reflected color, since no light passes through the opaque base. On Clear Glass light passes through, so both transmitted and reflected colors appear and shift with angle, suiting suncatchers and windows. Best for jewelry and focal cuts. The dichroic color combination is chosen from an AGS curated set selected for this pattern. An ArtGlassSupplies.com exclusive.
Specifications
- SKU: 160142
- Pattern: Etched Complex Passage
- Available bases: Black Glass, Clear Glass

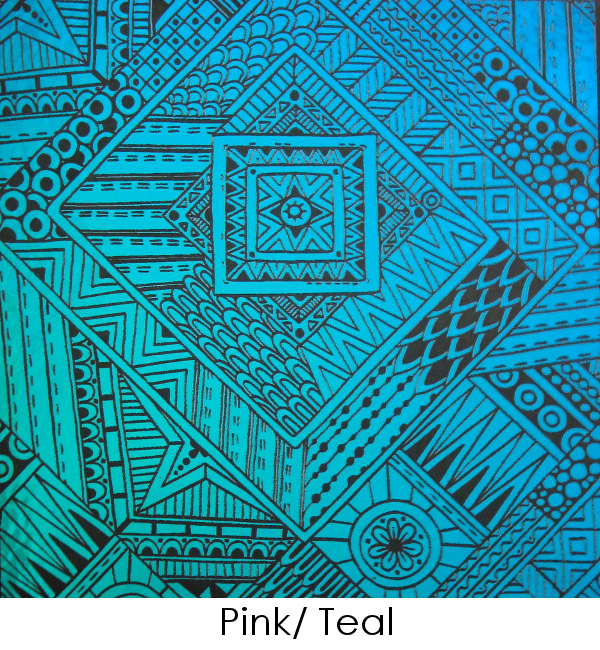

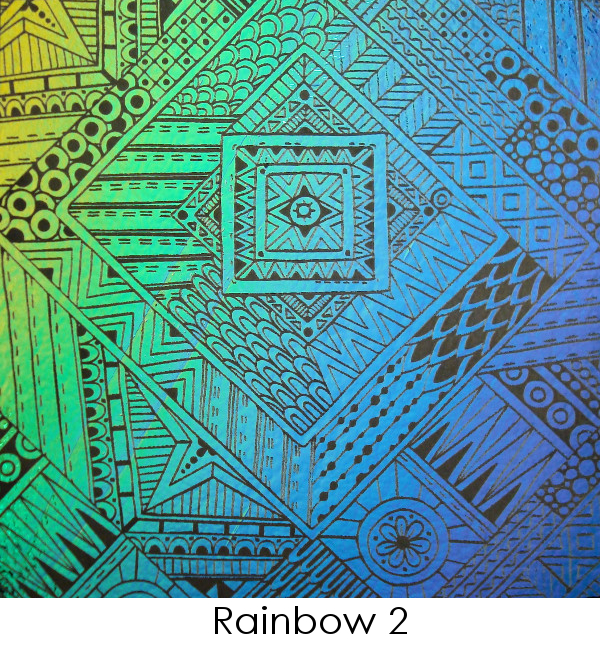

- Dichroic color combinations: Black Cherry Twizzle; Pink/ Teal; Rainbow 2
- Available sizes: 4"x4"
- Thickness: 2mm (Thin Glass)
- COE: COE90
- Category: COE90 Etched Dichroic
Would you like this pattern on another color glass? Use our Freestyle option →
Working Notes
Firing Guidelines & Helpful Tips
Firing schedules and surface results vary by kiln, glass thickness, base glass, coating, layering, and desired finish. These are guidelines, not guarantees. Use the base glass manufacturer's guidance, and test a small piece first when appearance or compatibility is important.
- Cut on the unetched (back) side.
- Clear capping, uncapped firing, and coating side orientation can each affect the final look, coating side up tends toward a glossier finish, and coating side down tends toward a more matte finish, so test first when the result matters.
For more details visit ArtGlassSupplies.com/etched tips/
Frequently Asked Questions
What is etched dichroic glass?
Dichroic glass is known for showing different colors depending on light and viewing angle. Ancient examples include the Roman Lycurgus Cup, whose color shift came from tiny gold and silver particles within the glass. Modern art dichroic glass uses a different thin-film coating approach: very thin metal or metal-oxide layers on the glass surface reflect some wavelengths of light while allowing others to pass through. For these products, selected areas of the coating have been etched away to leave the pattern, and the etched through areas reveal the base glass beneath. The coating is on one side only.
What base and color combinations are available for Etched Dichroic Complex Passage?
Bases are Black Glass or Clear Glass. The AGS curated dichroic color combinations are Black Cherry Twizzle, Pink/Teal, and Rainbow 2. Base, combination, and size are selected at order time.
How does the dichroic color look on Black vs Clear glass?
On Black Glass you see primarily the reflected color, bold and high contrast, because no light passes through the opaque base. On Clear Glass you see both the transmitted and reflected colors, shifting with the viewing angle as light passes through, suited to suncatchers and windows.
Is the Etched Dichroic Complex Passage made to order?
Each piece is etched to order. Because it is etched on demand, it may not ship under our standard next day shipping guarantee, allow extra handling time.
Can I get this pattern on a different glass, or my own pattern etched?
Yes. For other color glass or full configurability, use our Freestyle Etched option (linked on this page). Custom etching is also available, contact AGS to arrange your own pattern etched onto dichroic glass.
