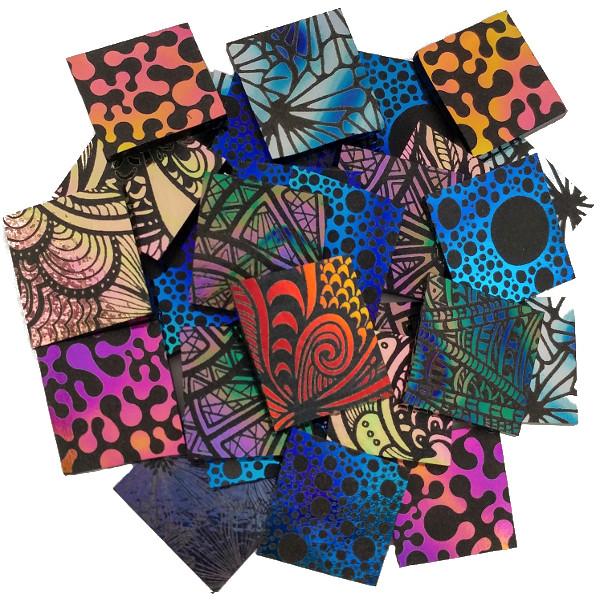

This square pack gathers twenty precut etched dichroic glass squares, ready to drop into jewelry, mosaic, inlay, and small accent work with no cutting required. Each square carries a patterned design with the dichroic coating on a clear base, finished small components for cabochons, pendants, and accent settings straight from the pack.
The dichroic coating reflects one color and transmits another. On this clear base, light passes through, so both the transmitted and reflected colors show at once, and their balance shifts as the viewing angle changes. This is a mixed, assorted lot, designs and colors vary piece to piece, and each square is unique. An ArtGlassSupplies.com exclusive.
Specifications
- SKU: 172243
- Product type: Etched dichroic patterned squares (mixed lot)
- Squares per pack: 20
- Square size: 1" x 1"
- Base glass: Clear Glass
- Thickness: 2mm (Thin Glass)
- COE: COE90
- Category: COE90 Etched Dichroic
Working Notes
Firing Guidelines & Helpful Tips
Firing schedules and surface results vary by kiln, glass thickness, base glass, coating, layering, and desired finish. These are guidelines, not guarantees. Use the base glass manufacturer's guidance, and test a small piece first when appearance or compatibility is important.
- Cut on the unetched (back) side.
- Clear capping, uncapped firing, and coating side orientation can each affect the final look, coating side up tends toward a glossier finish, and coating side down tends toward a more matte finish, so test first when the result matters.
For more details visit ArtGlassSupplies.com/etched tips/
Frequently Asked Questions
What is etched dichroic glass?
Dichroic glass has ancient roots, including the Roman Lycurgus Cup. Modern dichroic glass was advanced through NASA era vacuum deposition work, where ultra thin metal coatings were applied to transparent surfaces for optical protection. Today, dichroic glass uses thin metal oxide layers on the glass surface to create color that shifts with light and viewing angle. For these products, selected areas of the coating have been etched away to leave the pattern, and the etched through areas reveal the base glass beneath. The coating is on one side only.
What is in this pack?
A mixed lot of 20 precut 1" x 1" etched dichroic patterned squares on Clear Glass. The designs and colors vary piece to piece; specific designs cannot be requested. The squares are ready to use for jewelry, mosaic, and accents, no cutting required.
How does the dichroic color look on clear glass?
On clear glass light passes through, so you see both the transmitted and reflected colors at once, shifting with the viewing angle, which suits suncatchers and windows.
Is this made to order?
Each piece is etched to order. Because it is etched on demand, it may not ship under our standard next day shipping guarantee, allow extra handling time.
Can I get a custom pattern etched?
Yes. Custom etching is available, contact AGS to arrange your own pattern etched onto dichroic glass.
