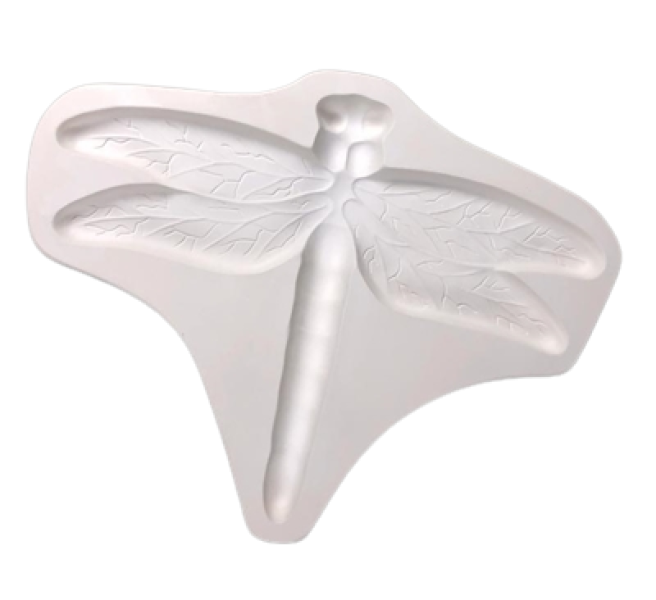

XL Dragonfly Casting Mold

The XL Dragonfly casting mold from Creative Paradise casts one large dragonfly in a single firing, with the finished piece measuring 13.5 inches long by 10.5 inches wide. The mold footprint is 15 inches by 12 inches, making it one of the larger format casting molds in the Creative Paradise lineup and well suited to statement pieces, panel accents, and display work.

Like all ceramic casting molds, this one is COE agnostic. Fill the cavity with frit, billets, or stacked sheet scrap and fuse to the dragonfly shape. Creative Paradise lists a fill weight of about 550 grams. As a kiln casting mold it is reusable across many firings when prepped and cared for properly.

What does the XL Dragonfly mold make?
It casts one dragonfly, finished at 13.5 inches long by 10.5 inches wide, in a single firing. The large scale suits decorative panels, garden art, and display pieces.

What COE glass can I use in this mold?
Any COE. Ceramic casting molds are COE agnostic, so the same mold works with COE96, COE90, or other fusible glass. Match your firing schedule to the glass you are using.

How much glass do I need?
Creative Paradise lists about 550 grams for this cavity. Weigh your glass and test a first run when the result matters, as actual fill weight can vary with how densely you pack the cavity.

How do I prep the mold before casting?
Coat the cavity with a kiln shelf primer such as a boron nitride spray (for example ZYP) or a kiln wash such as Hotline Primo Primer, and let it dry completely before adding glass. Re coat as needed between firings.

Specifications

• SKU: 167114
• Manufacturer: Creative Paradise (CPI.LF182)
• Makes: 1 dragonfly
• Finished piece size: 13.5 inches L x 10.5 inches W
• Mold size: 15 inches L x 12 inches W
• Suggested fill weight: about 550 grams
• Material: ceramic kiln casting mold, reusable
• Glass: any COE (COE agnostic)

Working Notes

These are guidelines, not guarantees. Every kiln fires a little differently, so test a small run first when the result matters and follow a casting schedule suited to your glass and kiln.

• Prime the cavity with a boron nitride mold primer such as ZYP Boron Nitride Mold Primer, or a kiln wash, and let it dry completely before adding glass so the glass does not stick.
• Fill with frit, billets, or stacked sheet scrap. For a tack fired surface, the manufacturer suggests powder and fine frit filled uniformly to about a quarter inch.
• The mold is COE agnostic. Use a full fuse schedule matched to your glass, adjusting the final anneal soak for your COE.
• Let the kiln cool fully before removing the cast piece. Re coat the mold with primer as needed between firings.
• The Slide Hi Temp brand separator is not recommended with these molds.

Creative Paradise Suggested Firing Schedule

This is a suggested COE96 starting schedule, not a guarantee. Every kiln fires differently. Test a small run and adjust the schedule for your glass and kiln.

Full Fuse (COE96):

Tack Fire (COE96): for a tack fired surface, fill uniformly to about a quarter inch with powder and fine frit.

*Segment 4 is the anneal soak at 950 F for COE96. If using COE90, adjust this temperature to 900 F.

Helpful downloads: XL Dragonfly Casting Tutorial (PDF) · Fill Weights for Casting Molds (PDF) · Casting Mold Tips (PDF)
